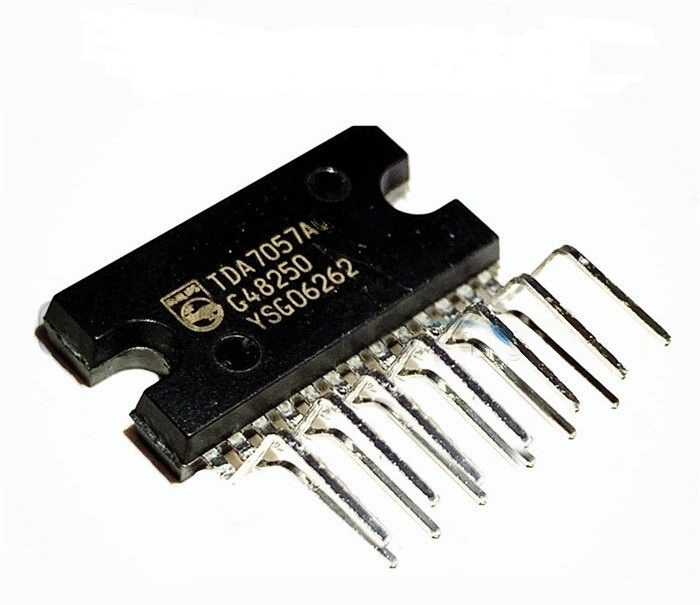

The TDA7057 is a stereo BTL (Bridge Tied Load) integrated circuit (IC) designed for audio amplification in low-power applications and has a total of 13 pins.
It is primarily used for amplifying audio signals in small, battery-powered devices such as portable radios, intercoms, TVs, monitors, and other similar applications.
It is primarily used for amplifying audio signals in small, battery-powered devices such as portable radios, intercoms, TVs, monitors, and other similar applications.
In addition, It is also suitable for driving small speakers, headphones, and other such appliances that do not need high amplification.
TDA7057 Features and Specifications
As with any other IC, it has its unique features and specifications, we highlight some key features and specifications of the TDA7057 below.
Power Output:
The TDA 7057 is a low-power stereo audio amplifier, and its typical output power is relatively low, typically 8 watts per channel totaling 16 watts for the two channels.
Operating Voltage:
The TDA 7057 is designed to operate from a single power supply voltage in the range of 2.0 to 15 volts. This makes it well-suited for battery-powered devices.
Stereo Amplifier:
The TDA 7057 is a stereo (double-channel) audio amplifier, which means it amplifies a dual audio output signal. It can be bridged to produce a mono audio output.
Low Distortion:
It offers relatively low distortion for its power rating, making it suitable for applications where audio quality is important.
Package Type:
The TDA 7057 is typically available in an SIP 13 Pin-type package making it compact and suitable for space-constrained designs.
More Features
Application:
The TDA 7057 is commonly used in portable audio devices, intercom systems, small radio receivers, and other low-power audio amplification applications.
DC volume control:
The volume level of this IC is adjusted by varying the DC voltage that is applied to the amplifier or other relevant components in the audio circuit.
A few external components:
It requires fewer components because its structure has most of the components built inside the IC.
Mute mode:
The 7057 has a mute mode which means you can be able to mute the audio output depending on how the circuit is configured.
Thermal protection:
The 7057 comes with an inbuilt thermal protection mechanism that protects it from overheating.
Short-circuit proof:
In case of a short circuit, the TDA 7057 shuts off due to an inbuilt short circuit-proof mechanism…
No switch-on and switch-off clicks:
There is no audible click when switching this IC on or off. This is a good attribute because it does not interfere with user experience.
Maker: The TDA7057 is made by Philips Electronics a renowned global electronics company.

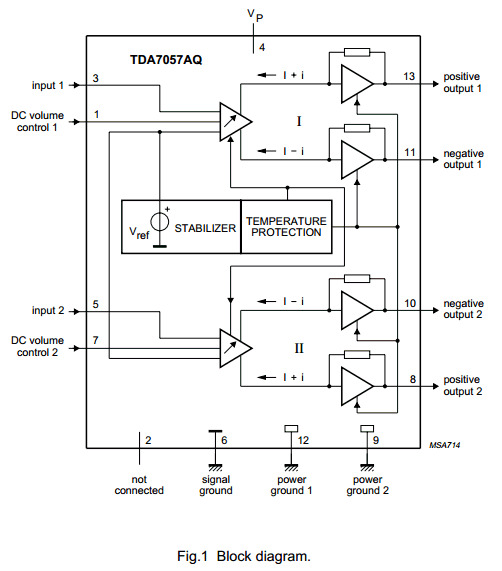

TDA 7057 Block Diagram
Check out the detailed TDA 7057 block diagram below…

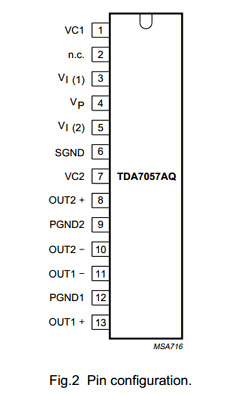

TDA 7057 Block and Pinout Diagram
Below is a detailed TDA 7057 pinouts diagram… The diagram also shares the pinouts information.
TDA 7057 Datasheet
When using the TDA 7057, it’s essential to refer to the manufacturer’s datasheet and application notes for detailed information on how to use it correctly.
Kindly click on the link ahead to view and download the TDA7057 datasheet…
TDA7057 Bottom Line
The TDA7057 IC is an efficient and compact solution for low-power stereo audio amplification. If you are designing a portable radio, intercom, or custom DIY audio project, this IC provides reliable performance, low distortion, and built-in protection features that simplify your design and enhance sound quality.
In addition, the IC offers you a proper circuit design, component selection, and precautions, such as input and output coupling capacitors and power supply filtering. These aspects if considered goes a long way in ensuring the safe and reliable operation of your specific application.
Additionally, the choice of external components and circuit design will impact the amplifier’s performance and output quality. For this reason, careful attention to these details is crucial.
Get the TDA7057 on Amazon
If you are an engineer designing a compact audio circuit or a DIY enthusiast building your next sound project, the TDA7057 stereo amplifier IC is a reliable and efficient choice. Its low-distortion output, wide operating voltage range, and built-in protection features make it ideal for portable radios, intercoms, speaker systems, and other custom audio builds.
You’ll often find great deals on single units or multi-packs — perfect for prototyping, experimenting, or scaling up production.
Pro Tip: Before purchasing, review the package type (SIP or DIP variant) to ensure it fits your circuit layout.
