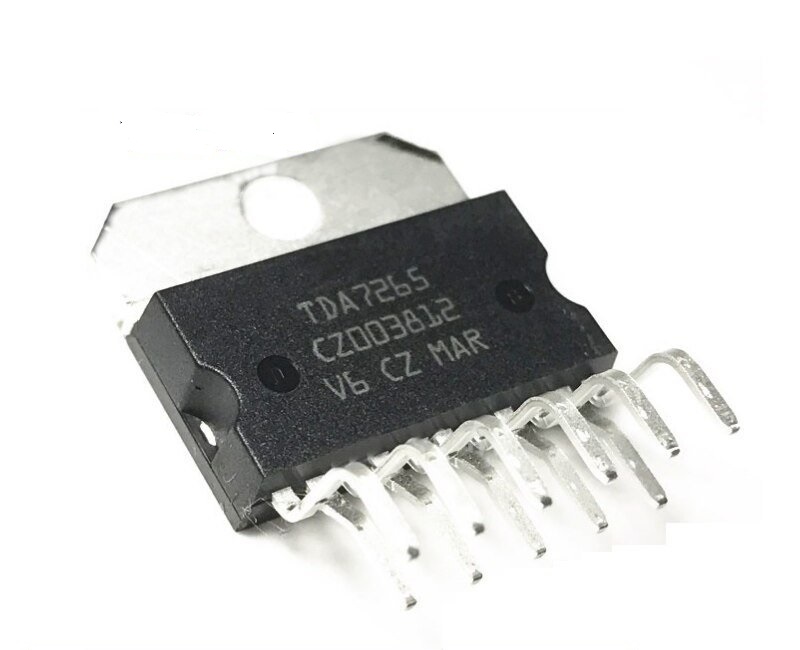

The TDA7265 is an integrated circuit (IC) designed for use as an audio amplifier and is a member of the STMicroelectronics TDA series of audio amplifiers.
It is specifically a dual bridge amplifier, which means it can be used to amplify audio signals in stereo (two-channel) applications and is a class AB Stereo Audio Power Amplifier IC that produces an output of 25W + 25W on each channel and comes in a Multiwatt-11 Package.
It is a high-performance dual audio power amplifier IC designed for Hi-Fi stereo systems, home theater setups, and DIY amplifier projects. Manufactured by STMicroelectronics, this Class AB amplifier delivers 25W per channel into an 8-ohm load with exceptional sound quality, low distortion, and built-in protection features—all packed in a compact Multiwatt-11 package.
Whether you’re building a new stereo amplifier or replacing a faulty chip in a TV or subwoofer system, the TDA7265 offers a reliable and robust solution with minimal external components required.
Key Features of the TDA7265
- Dual-Channel Output – 25W + 25W stereo audio
- Class AB Operation – Balanced performance with high fidelity
- Built-In Mute and Standby – Reduces pops and power-on noise
- Short-Circuit Protection – Safe under load failure conditions
- Thermal Shutdown – Protects the IC from overheating
- Pop-Free Operation – Clean turn-on and turn-off transitions
- Compact Package – Multiwatt-11 for easy heatsink mounting
Technical Specifications of the TDA7265
| Parameter | Value |
| Output Power | 25W + 25W @ 8Ω |
| Supply Voltage Range | ±5V to ±25V |
| Total Harmonic Distortion | < 0.1% @ 1kHz |
| Standby Current | ~1mA |
| Quiescent Current | 80mA (typical) |
| Input Sensitivity | ~300mV |
| Output Load Impedance | 4Ω to 8Ω |
| Package Type | Multiwatt-11 |
| Operating Temperature | -20°C to +85°C |
Common Applications
- Home stereo systems
- Stereo TVs and multimedia speakers
- DIY audio amplifier kits
- Home theater audio modules
- Audio enhancement for PC builds or media centers
Pinout Diagram
Below is the labeled pin configuration for the TDA7265 (Multiwatt-11)
Simple Schematic Diagram
Here is a basic stereo amplifier schematic using the TDA7265 IC
TDA7265 PDF Datasheet
For in-depth technical information, application tips, and electrical characteristics have a look and download the TDA7265 Datasheet PDF.
Personal Note from Eddy
“I’ve used the TDA7265 several times when repairing older LG and Sony home theater systems, and I must say—this chip delivers clean, punchy stereo sound without breaking the bank. It’s one of my go-to ICs when building custom audio setups for clients who want clarity, warmth, and a bit of bass on a budget. If you’ve got speakers and a proper power supply, this one won’t disappoint you.”
TDA 7265 Summary
The TDA7265 is a high-performance dual-channel audio amplifier IC from STMicroelectronics, designed for Hi-Fi stereo systems, home theaters, and DIY amplifier projects. Delivering 25W + 25W output power in a Class AB configuration, it offers crystal-clear sound with low distortion and excellent thermal stability.
Packaged in a compact Multiwatt-11 form, the TDA7265 is built for reliability and efficiency, featuring short-circuit protection, thermal shutdown, and pop-free operation for smooth startup and shutdown. Ideal for audio enthusiasts, technicians, and hobbyists, it’s a top choice for anyone seeking clean stereo power and robust performance in a single IC.
Key Benefits:
- 25W + 25W stereo output for rich, balanced sound
- Low distortion (<0.1% THD) for high-fidelity audio
- Built-in mute & standby modes for smooth operation
- Thermal & short-circuit protection for reliable performance
- Compact Multiwatt-11 package for easy installation and heat management
